SEISMIC BRACING

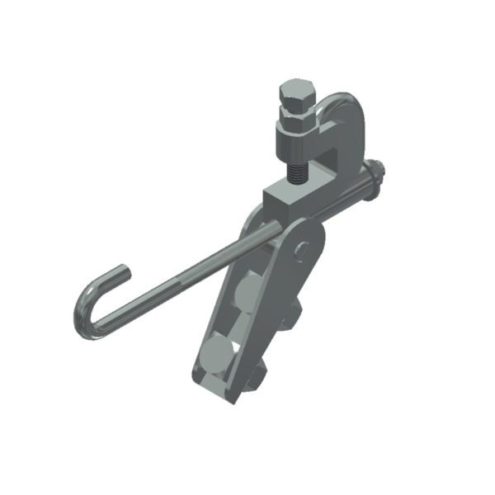

Seismic Cable Restraints shall consist of galvanized steel aircraft cables sized to resist seismic loads with a minimum safety factor of two and arranged to provide all directional restraint. Cables must be pre-stretched to achieve a certified minimum modulus of elasticity. Cable end connections shall be steel assemblies that swivel to final installation angle and utilize two clamping bolts to provide proper cable engagement. Cables must not be allowed to bend across sharp edges. Cable assemblies shall have an OPA preapproval from OSHPD in the State of California verifying the maximum certified load ratings. Cable assemblies shall be type SCB at the ceiling and at the clevis bolt, SCBH between the hanger rod nut and the clevis or equipment, or SCBV if clamped to a beam, all as manufactured by Mason Industries, Inc.

BULLETINS & DOCUMENTATION

HANGERS SPECIFICATIONS
SEISMIC SWAY BRACE SYSTEM – DATA SHEET
SAS, SASE, SAST, SRA – DATA SHEET
CCB – SUBMITTAL
PCCB – SUBMITTAL – (Contact us for more info)
SCBA – SUBMITTAL – (Contact us for more info)
SRC – SUBMITTAL
SCB – SUBMITTAL
SCBH – SUBMITTAL
SCBV – SUBMITTAL
SSBS – SUBMITTAL
SSB – SUBMITTAL
SHB – SUBMITTAL – (Contact us for more info)
SFB – SUBMITTAL – (Contact us for more info)
JAH – SUBMITTAL
UCC – SUBMITTAL
SLDB – SUBMITTAL
SAS & SASE – SUBMITTAL
SAST – SUBMITTAL
