500 SERIES

Series 500

The Invincible 500 is our most rugged expansion joint. They are all hand built by our skilled craftsmen. The 1/4” minimum thickness solid elastomer tube is continuous with the flange face. Multiple plies of rubber impregnated high strength polyester or nylon tire cord form the first pressure reinforcement over the tube. Arch swell in response to pressure and arch migration are virtually eliminated by criss-crossed layers of reinforcement that pass over the arch and around steel or ductile iron rings embedded on both sides at the base of the arch. Body swell is controlled by high strength fabric or spiral steel wire. Large diameter joints are often built with steel rings in place of the wire when in addition to internal pressure, external pressure resistance is important. External pressure may come from deep burial, shallow embankment under roadways or joints inside tanks.

Series HT500

The Invincible HT500 has all the construction features of the 500 combined with High Temperature capability. DuPont Kevlar® or other heat resistant fabrics replace the polyester or nylon. The tube and cover are either EPDM or Viton® for full pressure service up to 350°F and 400°F respectively.

BULLETINS & DOCUMENTATION

MASON-MERCER SPECIFICATIONS
HEAVY DUTY EXPANSION JOINTS
IMPROVED METHOD OF STEAM CURING
VITON CASE HISTORY
POWER PLANT PRESSURE BALANCE APPLICATION
COOLING TOWER APPLICATIONS
APPLYING EXPANSION JOINTS

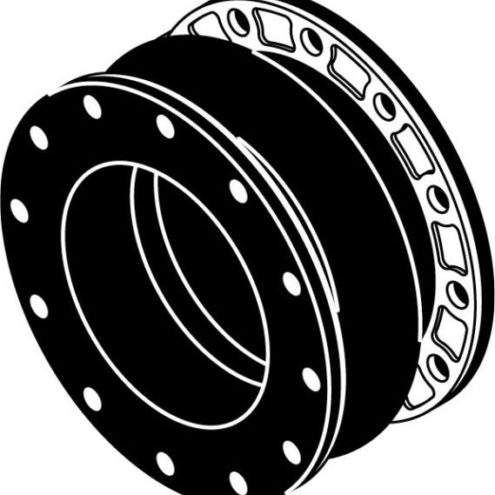

501 & HT501 SUBMITTAL
502 & HT502 SUBMITTAL – (Contact us for more info)
503 & HT503 SUBMITTAL – (Contact us for more info)

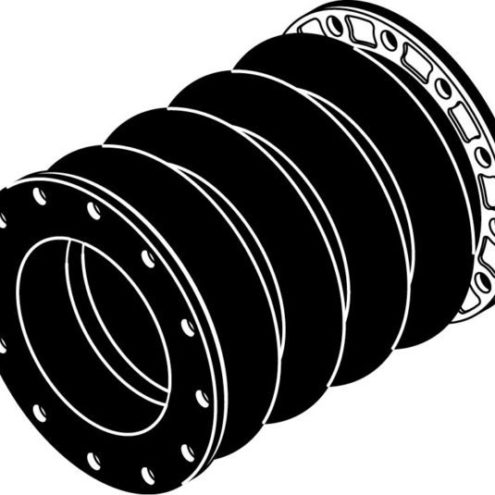

504 & HT504 SUBMITTAL – (Contact us for more info)
