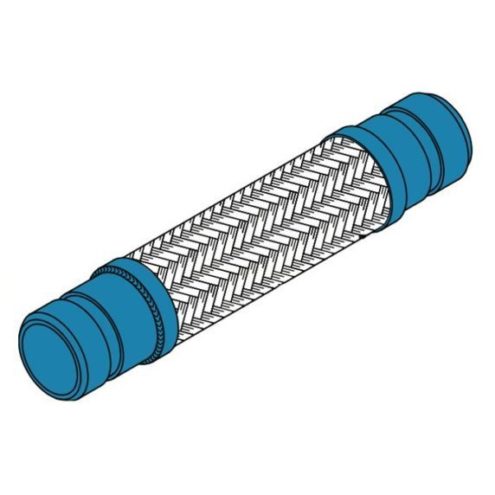

MN & MN-UL - SS Braided Hose with Carbon Steel Threaded Nipples

Stainless Steel Flexible Connectors contribute to the solution of vibration, noise, expansion and offset motion problems in piping systems. Assemblies are designed for both high and low temperatures, as well as high pressure and full vacuum.

Stock sizes include 1/2” (13mm) through 16” (400mm) pipe diameter. Temperature ranges are from below 0°F (-18°C) to 850°F (454°C) when using our standard 304 stainless steel. On rare occasions, when temperatures as high as 1500°F (816°C) are needed, Type 316 or 321 are available too. Most standard construction is single braided, but we can provide double braid for higher pressures or omit the braid for low pressure venting or exhaust applications.

MN

Pipe Size & End to End
(in)
Ship Wt. (lbs) Average
Inventory
1/2 X 61/2* 0.4 100
1/2 X 12 0.6 200
1/2 X 18 0.8  25
1/2 X 24 1.0  25
1/2 X 36 1.4  25
3/4 X 7* 0.6  200
3/4 X 12  0.8  300
3/4 X 18  1.0  50
3/4 X 24  1.3  50
3/4 X 36  2.0  25
1 X 8*  0.8  200
1 X 12  1.1  50
1 X 18  1.5  50
1 X 24  1.9  25
1 X 36  2.7  20
11/4 X 81/2*  1.3  100
11/4 X 12  1.5  100
11/4 X 18  2.0  50
11/4 X 24  2.5  20
11/4 X 36  3.5  5
11/2 X 9*  1.5  100
11/2 X 12  1.9  100
11/2 X 18  2.5  50
11/2 X 24  3.0  20
11/2 X 36  4.0  5
2 X 101/2*  2.2  100
2 X 12*  2.4  100
2 X 18  3.2  50
2 X 24  4.0  20
2 X 36  5.6  5
21/2 X 12*  3.6  15
21/2 X 18  4.6  10
21/2 X 24  6.0  10
21/2 X 36  8.8  4
3 X 12*  5.0  15
3 X 18  5.5  10
3 X 24  7.4  10
3 X 36  11.4  4
4 X 12*  7.3  5
4 X 18*  8.6  5
4 X 24  10.6  5
4 X 36  14.6 4

Submittal & Files

PRODUCT SUBMITTAL
2D CAD DETAILS – (Contact us for more info)
3D CAD DETAILS – (Contact us for more info)
MODEL STP FORMAT
REVIT RFA FORMAT

MN-UL

Pipe Size & End to End
(in)
Ship Wt. (lbs) Average
Inventory
1/2 X 12 0.6 200
1/2 X 18 0.8 25
1/2 X 24 1.0 25
1/2 X 36 1.4 25
3/4 X 12 0.8 300
3/4 X 18 1.0 50
3/4 X 24 1.3 50
3/4 X 36 2.0 25
1 X 12 1.1 50
1 X 18 1.5 50
1 X 24 1.9 25
1 X 36 2.7 20
11/4 X 12 1.5 100
11/4 X 18 2.0 20
11/4 X 24 2.5 20
11/4 X 36 3.5 5
11/2 X 12 1.9 100
11/2 X 18 2.5 25
11/2 X 24 3.0 25
11/2 X 36 4.0 5
2 X 12 2.4 100
2 X 18 3.2 50
2 X 24 4.0 20
2 X 36 5.6 5
21/2 X 18 4.6 10
21/2 X 24 6.0 10
21/2 X 36 8.8 4
3 X 18 5.5 10
3 X 24 7.4 10
3 X 36 11.4 4
4 X 18 8.6 5
4 X 24 10.6 5
4 X 36 14.6 4

Submittal & Files

PRODUCT SUBMITTAL
2D CAD DETAILS – (Contact us for more info)
3D CAD DETAILS – (Contact us for more info)
MODEL STP FORMAT – (Contact us for more info)
REVIT RFA FORMAT – (Contact us for more info)
