MSW

3/8” Thick Natural Rubber Mini Super W Waffle Pad 2X2 Super W Pad sheet 18” x 18” x 3/4 ” (450 x 450 x 20mm) consists of 81 – 2” (50mm) modules. The 2” (50mm) squares are separated by a thin web that is easily cut to provide evenly dimensioned pads such as 2” x 2” (50 x 50mm), 2” x 4” (50…

SW

3/4” Thick Neoprene Super W Waffle Pad 2X2 Super W Pad sheet 18” x 18” x 3/4 ” (450 x 450 x 20mm) consists of 81 – 2” (50mm) modules. The 2” (50mm) squares are separated by a thin web that is easily cut to provide evenly dimensioned pads such as 2” x 2” (50 x 50mm), 2” x 4” (50 x 100mm),…

ML & MLS

Leveling and Shock Mounts This classic style of machinery leveling mount is the most widely accepted and has been in use for over 40 years. The simplicity of up to 5/8″ 16mm leveling with a single bolt per location while providing shock and vibration isolation solves many problems. Friction is developed by the neoprene element, eliminating the need for bolting to the floor.…

RL & RCL

Light Load Leveling Mounts Mountings can be used with or without plated steel glide cups or leveling bolts. Furnished with 3/8 – 16 or 1/2 – 13 tapped holes or studs to accommodate large or small holes in the machinery leg. • Neoprene resists oil, oxygen and ozone. • Upper plate provides uniform mounting loading. • May be bolted directly without leveling…

R & RC

Light Load Leveling Mounts Mountings can be used with or without plated steel glide cups or leveling bolts. Furnished with 3/8 – 16 or 1/2 – 13 tapped holes or studs to accommodate large or small holes in the machinery leg. • Neoprene resists oil, oxygen and ozone. • Upper plate provides uniform mounting loading. • May be bolted directly without leveling…

BM

BM – Neoprene Business Machine, Piano, etc. Mounts The BM Cup Mount provides a simple attachment method for machines on casters up to 3” 76mm diameter or square legs up to 1” 25mm square. Applications are as diverse as office machine or office machines on desk applications, packaged air conditioners on legs or pianos on casters. A general purpose mounting for those…

BR

BR – Restrained Bridge Captive Neoprene elements shall be arranged in opposition within a steel or ductile iron housing to provide positive mechanical restraint in all directions. Neoprene elements shall prevent metal to metal contact during normal operation. Bonded assemblies without mechanical interlocks are not acceptable. Neoprene elements shall be of bridge bearing quality as tabulated. All mountings shall have minimum 1.0 horizontal…

RAA, RBA, RCA, RDA

RAA-RDA Captive neoprene mountings shall consist of a steel housing with a captive steel insert embedded in neoprene to prevent contact between the housing and the central threaded insert. Bonded assemblies without mechanical interlocks are not acceptable. All mountings shall have minimum 1.0 horizontal G ratings and anchorage preapproval “OPA” numbers from the Office of Statewide Health Planning…

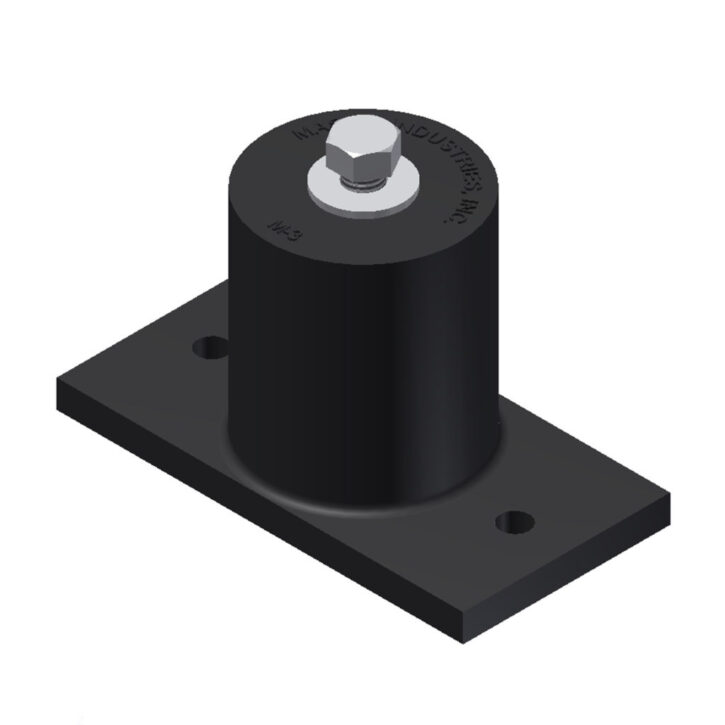

M

M – Rubber Shock Mountings Size Duro-meter Rated Capacity(lbs) Ship Wt.(lbs) 0 30-50 14-38 0.5 1 30-70 60-350 1.2 2 40-70 190-680 2.2 3 40-70 310-1155 3.5 Submittals & Files BULLETINS, DATA SHEETS & INFORMATION RELATED PRODUCTS

ND

ND The definition of a rubber isolation mounting is any configuration, round, square or rectangular with a known capacity and deflection. Acoustical solutions are in the 6 – 8 Hz frequency range. However, these very same low stress isolators can be stacked with steel shim plates between to achieve lower frequencies for vibration isolation. This…
